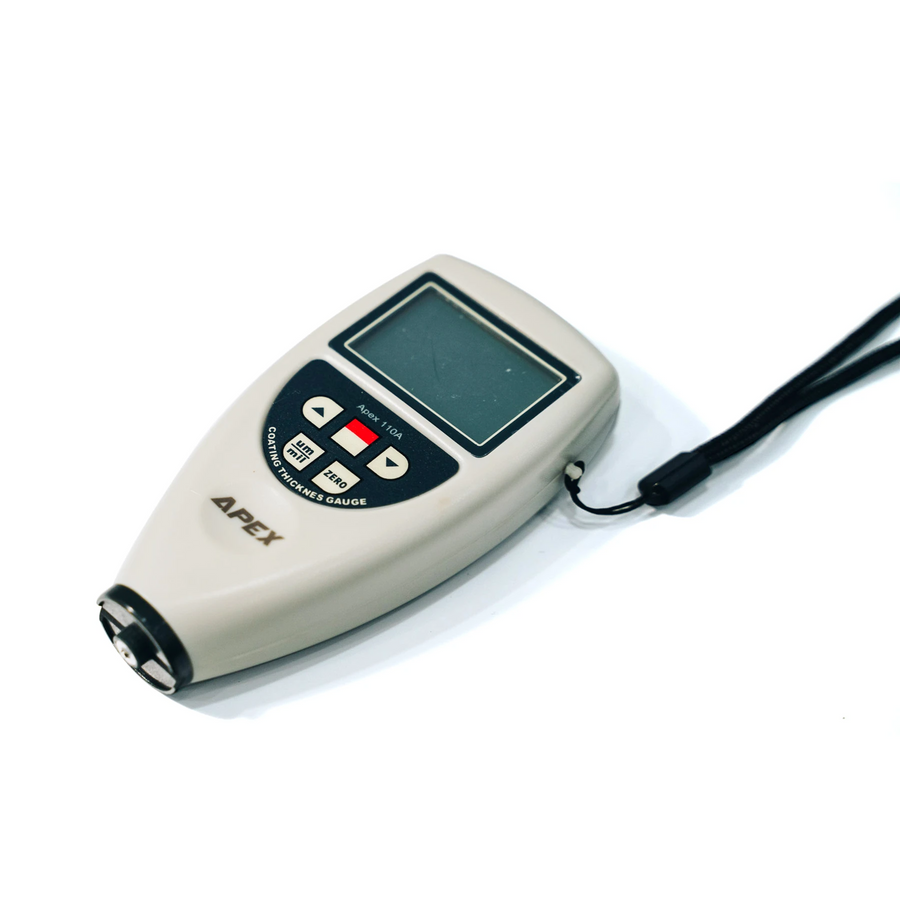

Apex Custom's Paint Thickness Gauge is an innovative tool that allows you to accurately measure the thickness of your painted surfaces.
The Paint Thickness Gauge is an integral bit of kit suited for single-hand operation. The large contact surface area allows for great stability, enabling users to get continuous, accurate and reliable measurements.
The gauge measures all painted ferrous and non-ferrous surfaces (i.e metal and aluminium).
- Measuring Range: 0~1250 um / 0~50mil
- Display: 4 digits, 10mm LCD
- Resolution: 0.1 um (0~99.9um) / 1 um (over 100um)
- Accuracy: ±1~3%n or 2.5 um or 0.1mil
- Minimal surface: F Type convex 1.5 mm / concave 25 mm / NF Type convex 3 mm / concave 50mm
- Size: 120x63x25 mm
- Power Supply: 2 x 1.5v AAA Um-4 Battery
- Weight: 90 g (excluding batteries)
- 12 Month Warranty
