FY-TECH Short Wave 2 Bank Infrared Paint Curing System FY-2AT (*)

Important Notes:

• This item ships from a different warehouse, so please allow 3-4 business days before dispatch. Standard delivery times apply once it's sent. Click & Collect isn't available for this item.
• This item is sent by the supplier's courier, so express shipping options at checkout (e.g. Express Post, StarTrack) don't apply to it. Any other items in your order still ship by the method you choose.
• Shipping on these items can be high and varies by location, so the amount shown at checkout is only an estimate. We strongly recommend emailing hello@detailstore.com.au for a firm quote before ordering.
• If you order without a quote, we'll email the final freight cost before dispatch. If you cancel at that point, a 3% cancellation fee applies.
• Additional charges particularly apply to WA, North QLD and NT.
• Delivery is to business or commercial addresses only (not residential). Please also let us know if you have a forklift available for unloading.

FY-2AT control system is made with the PET hot press molding technique to provide stability and durability and features a touch-key panel design. It can be adjusted according to different paint layer requirements. Each emitter can be independently controlled.

The cassette structure is precision designed and uses 304 grade bright stainless steel reflectors and VPOWER or PHILIPS 21″ gold plated shortwave infrared halogen lamps that enable the light to distribute evenly and increase the curing area.

• Made from aluminium alloy and 304 grade bright stainless steel reflectors.
• Equipped with Vpower’s 21″ quartz short wave infrared halogen lamps (Optional PHILIPS lamps also available).
• Automatic device with LED display electronic timer and power settings.
• Hydraulic lifter with an independent switch and 360º rotation.
• With pulse ultrasonic paint curing function.
• Power supply AC 200-240V Input Power: 2x1100W
• Curing area of 800x1000mm
• Adjustable timer of 0min-99mins.

• Automatic overload protection.
• Each emitter can be independently controlled.

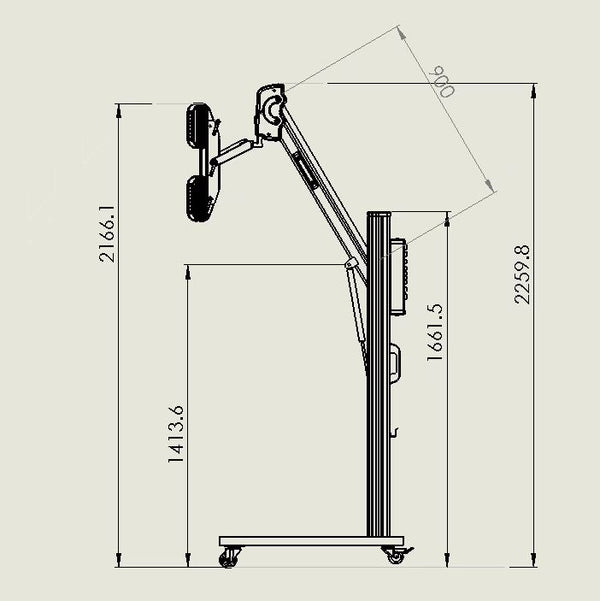

• Dimensions of unit: 1650 x 860 x 660mm

Application: For ceramic coating applications, it is recommended to have a contact time of 20 minutes from a 1 metre distance at 60deg C per contact area section. This may differ across the types of coatings used.

Shipping Information:
Box 1 of 3 (Head):   74  x  58 x  19cm  – 7kg
Box 2 of 3 (Body): 161  x  15  x  71cm   – 18kg
Box 3 of 3 (Base):  89  x  68  x  66cm  – 16kg

Download Brochure here

User Manual here
