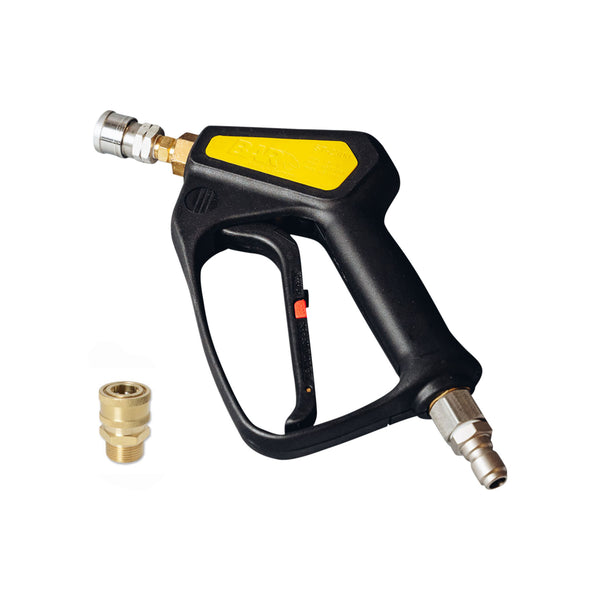

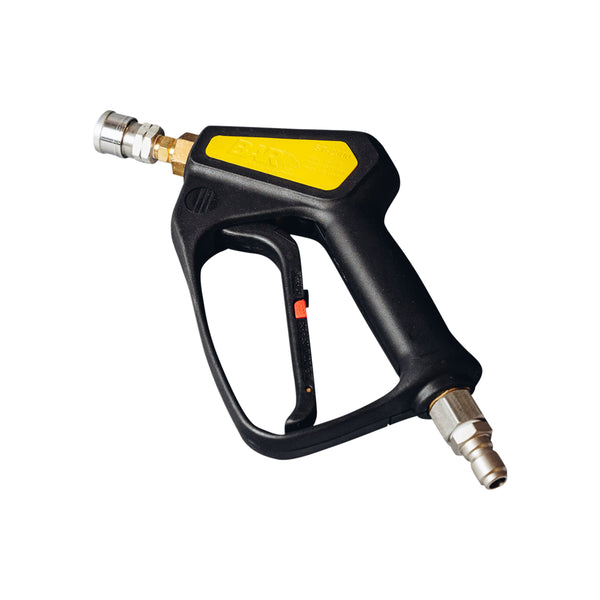

A high quality short gun that adapts to any pressure washer with the right fitting for added convenience of reaching tighter spots like underneath chassis or even the engine bay compartments.
This assembly comes complete with quality quick connect components that is even stronger and comes with a swivel connector at the water inlet for ease of manoeuvrability. All connections have been fitted with thread seal tape to prevent leaks and is ready for plug & play.
Manufactured in Germany
Connections:
Inlet: 3/8" Quick Connect Plug (with built-in 360 deg swivel)
Outlet: 1/4" Quick Connect Coupling
Optional: 40 deg Spray Nozzle with 1/4" Quick Connect Plug (optimum for car wash applications)
| Specifications: |
Short Trigger Gun (Standalone) |
| Inlet: |
3/8" Bsp Female |
| Outlet: |
1/4" Bsp Female |
| Flow: |
45 l/min. |
| Pressure: |
5000 Psi (max. 5000 Psi) |
| Temp: |
150°C |

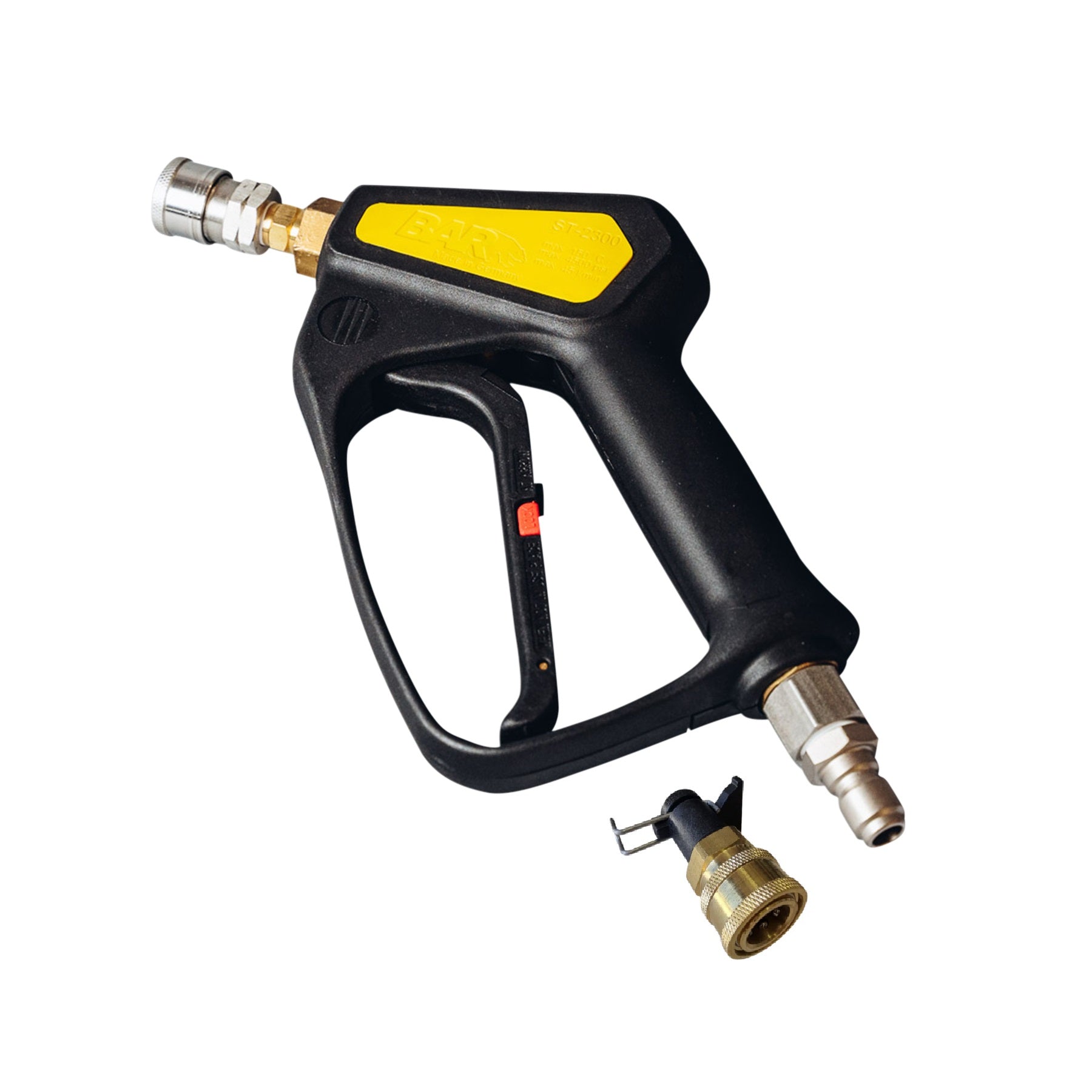

Connection to a M22 water hose
The short trigger gun comes standard with a 3/8" QC plug exit. To integrate this kit with a M22 female hose connector which is standard across most pressure washers such as ones from Kranzle; you will need to purchase this adaptor which is a 3/8" QC coupling to M22 male thread adapter to suit.
40 Degree Spray Nozzle (Optional)
Built with a 1/4" quick connect plug, this can be easily fitted and removed to the short trigger gun by releasing the quick connect sleeve. The 40 degree spray nozzle is perfect for car washing applications with a wide spray angle and is designed to suit most pressure washers with a rating of 1800psi to 2600psi operating at flow rates between 7-10LPM.
