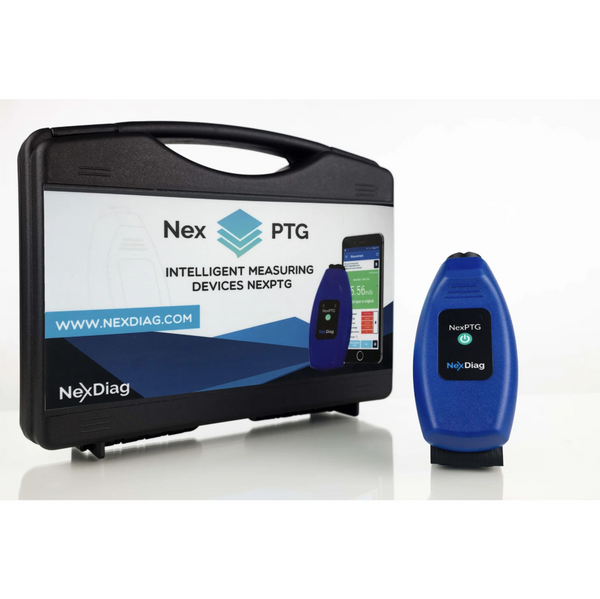

NexDiag NexPTG Digital Paint Thickness Gauge
NexDiag NexPTG Digital Paint Thickness Gauge
NexDiag NexPTG Digital Paint Thickness Gauge
NexDiag NexPTG Digital Paint Thickness Gauge
NexDiag NexPTG Digital Paint Thickness Gauge
NexDiag NexPTG Digital Paint Thickness Gauge

NexDiag NexPTG Digital Paint Thickness Gauge

Rated 5.0 out of 5
Based on 6 reviews
Sale price $340.90 AUD Regular price $359.90 AUD
On Sale

Tax included

Shipping calculated at checkout

Nex PTG is a professional car paint thickness gauge, effective in operation and easy to use, which allows you to make quick and, most importantly, precise measurements. The Nex PTG meter enables testing of steel, galvanized steel and aluminum surfaces. It is worth emphasizing that the varnish sensor automatically recognizes the tested substrate. In addition, the paint thickness gauge we offer has a number of additional innovative options that will help the user to examine the vehicle more easily and efficiently.

The Professional version makes measurements with even greater accuracy than the Standard and Advanced versions. In addition, the Professional gauge has a number of options that will help the user to examine a vehicle more efficiently and more effectively, including:

  • Suggested measurement points
  • Buyer’s guide
  • Export of measurement history
  • Creation of reports

This is the most modern device of its kind on the market.

Specifications

  • Testing substrate: Steel [Fe] / Zinc-plated steel [Fe+Zn] / Aluminum [Al]
  • Recognized substrate types: [Fe] / [Fe+Zn] / [Al]
  • Range of measurement: 0 - 2500 μm (0 – 98.43 mils)
  • Type of probe / End of probe: movable/spherical
  • Possible measurement on curvatures (profiled probe housing)
  • Resolution of measurement: 1 μm (0.04 mils)
  • Measurement memory: up to 4000 items
  • Wireless transmission: Bluetooth 4.0 LE
  • SAPL Extended: lacquer coating analysis system
  • Suggested measurement points
  • Creation and export of measurement history
  • Creation and export of reports
  • API communication
  • Supported systems: iOS / Android

Software

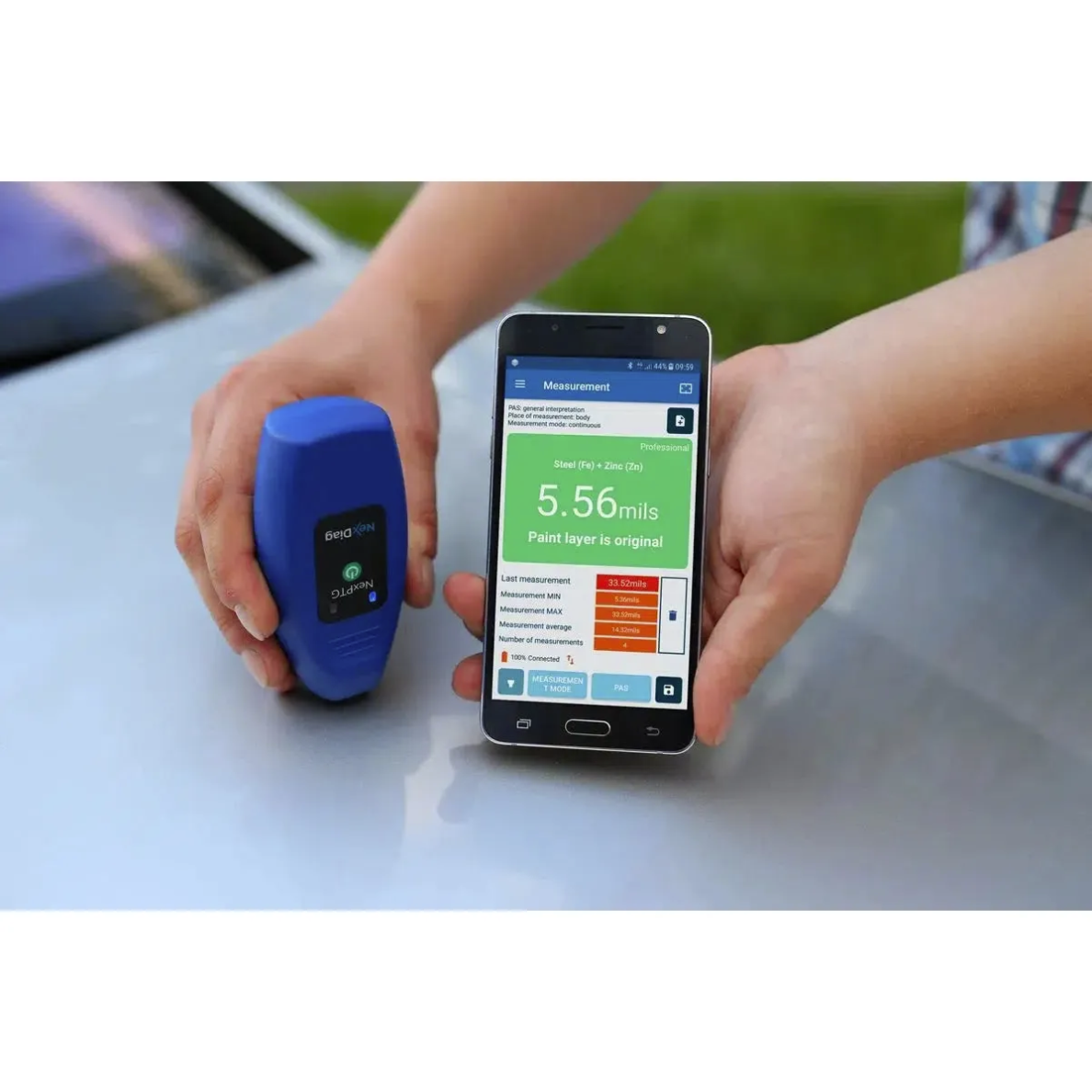

NexPTG has a dedicated application. You can install it on any mobile device equipped with iOS or Android. The dedicated application will allow you to examine the lacquer coat with unprecedented accuracy and precision.

Thanks to the Lacquer Coating Analysis System you can analyse the lacquer on the surface of the entire body in an instant, and the application will help you interpret the results of measurements.

No other device on the market offers such possibility.



COMPARISON TABLE

FUNCTIONALITIES NexPTG Pro Carbon NexPTG Professional
Range of measurement 0 - 3000 ^m (0 - 118.11 mils) 0 - 2500 ^m (0 - 98.43 mils)
Measurement resolution 1 ^m (0.04 mils) 1 ^m (0.04 mils)
Number of measurements per second 10 10
Type of probe / Probe ending Movable/Spherical Movable/Spherical
Probe housing Profiled Profiled
Curve measurement Yes Yes
Measurement memory Up to 8000* Up to 4000*
Time of continuous work on alkaline batteries Up to 100 h Up to 100 h
Ambient temperature for the gauge's work From -20 to + 40 °C From -20 to + 40 °C
Unit of measurement ^m or mils ^m or mils
Substrate recognition Steel, galvanized steel**, aluminium Steel, galvanized steel**, aluminium
Substrate testing Steel, galvanized steel, aluminium Steel, galvanized steel, aluminium
Communication with the application Bluetooth 4.0 LE Bluetooth 4.0 LE
Application update Free Free
Message indication Text, graphic, audio Text, graphic, audio
Housing colour Carbon Blue
 Zinc detection  Up to 1000 μm  Up to 800 μm
 Warranty  36 months 24 months
Weight of the device without batteries 58 grams 58 grams
Size 112x50x28mm 112x50x28mm
Availability on systems Android, iOS Android, iOS
Supported batteries 2xAA 2xAA
Measurement modes Continuous, single Continuous, single
Testing relative to reference point Yes Yes
Automatic device shutdown in period of inactivity Yes Yes
Measurement statistics Yes Yes
Lacquer Coating Analysis System -SAPL Extended Extended


Multilingual menu PL, EN, DE, FR, IT, ES, PL, EN, DE, FR, IT, ES, RU,
RU, FA, CZ, HE, NL, NO, FA, CZ, HE, NL, NO, TR,
  TR, SA, JP SA, JP
Enrichment with new features Yes Yes
Suggested measurement points Yes Yes
Buyer's guide Yes Yes
Creation of reports and measurement history Yes Yes
Export of reports and measurement history to e-mail Yes Yes
API communication Yes Yes
Dedicated API (additional paid) Yes Yes


Alternative product we sell is the CleanSkin Paint Thickness Gauge - Ferrous & Non-Ferrous Metals AC-110A
