New Quick Release Plug-in system D12.

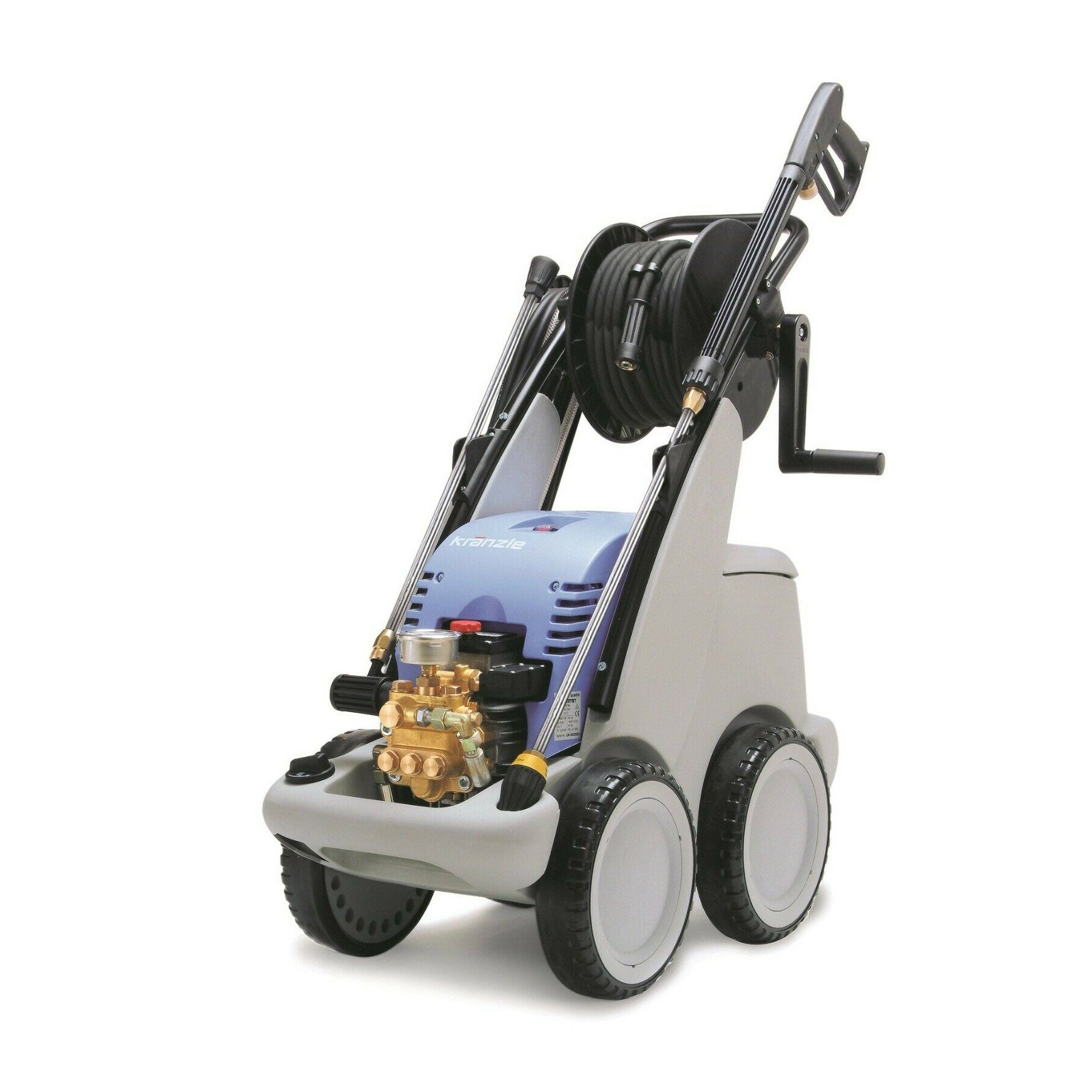

The Kränzle quadro series combines all advantages from the Profi series and, due to its double axle chassis and its 4 wheels, sets a new benchmark with regard to stability while offering highest conformity during operations that require frequent change of position. In such cases, too, large overdimensioned gears and oil housings are used to noticeably increase the service life during rough industrial operation. And, of course, the integrated hose drum with foldable crank and up to 20 m high-pressure hose come as a standard with many of the quadro models as well as the sturdy shock absorbing buffers and the integrated water tank.
Click to view User Manual
Features:
Specifications:
Equipment:
Recommended oil change after 200 hours of use. Recommended oil specifications = Castrol RX Super 15W-40 CJ-4/E9 or Valvoline Super Diesel 15W-40
| Brand | Kranzle |
| P/N | KQ599TST |
| Voltage | 240V |
| Outlet | 15A |
| Motor Type | 4-Pole Electric Motor |
| Motor RPM | 1400 |
| Pressure Rating | 2175 psi |
| Flowrate | 10 LPM |
| Weight | 62kg |
| Dimensions | 780 x 395 x 870 mm |
| Country of Manufacture | Germany |
| Pump Head | Brass |
| Total Stop | Yes |
| Type | Cold Water |
| Pump / Motor Warranty | 2 years /10 years on brass pump head |
| Hose Length | 20m |
| Hose Adaptor Type | M22 |
| Suitable for | Professional |
